Nested Subsystems

Demonstration of hierarchical modeling using nested subsystems for a Van der Pol oscillator.

You can also find this example as a single file in the GitHub repository.

Why Use Subsystems?

Subsystems allow you to:

Organize complex systems into logical modules
Reuse components across different models
Abstract implementation details
Scale to large systems with many components
Debug and test individual modules separately

The Van der Pol Oscillator Revisited

The stiff Van der Pol oscillator is described by:

MATHDISPLAY0ENDMATH MATHDISPLAY1ENDMATH

With MATHINLINE2ENDMATH (very stiff!)

Hierarchical Structure

This example demonstrates hierarchical modeling using Subsystem and Interface blocks for modular system design.

Python

System Parameters

Python

Level 1: ODE Function Subsystem

First, we create a subsystem that computes MATHINLINE0ENDMATH

This subsystem:

Takes two inputs: MATHINLINE1ENDMATH and MATHINLINE2ENDMATH
Returns one output: the computed derivative
Is self-contained and reusable

The Interface block defines the subsystem's inputs and outputs and this is how it looks like in pathsim:

Python

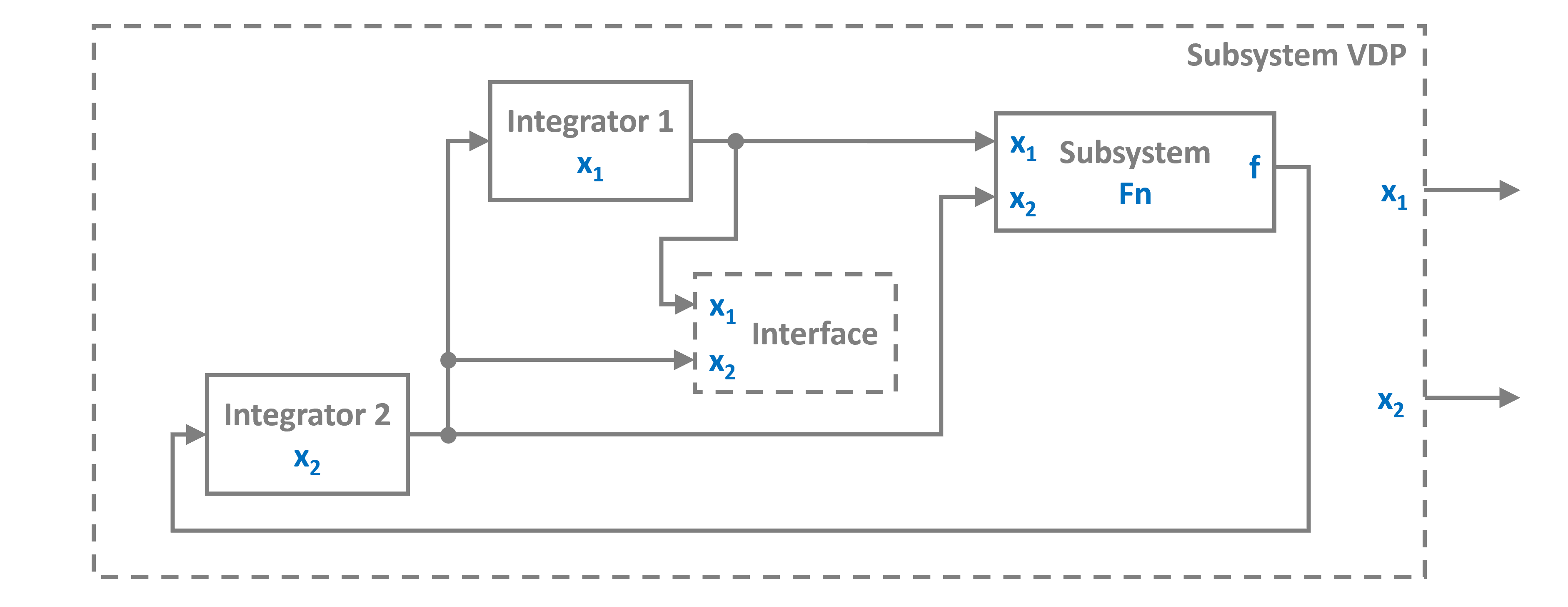

Level 2: Van der Pol Subsystem

Now we create a subsystem that contains:

Two integrators (for MATHINLINE0ENDMATH and MATHINLINE1ENDMATH)
The ODE function subsystem we just created

This implements the complete Van der Pol ODE system:

Python

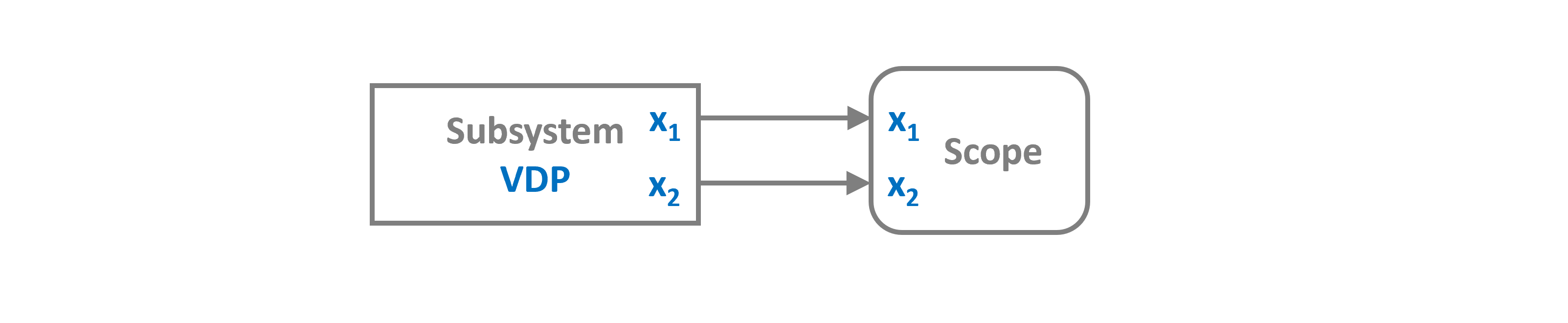

Level 3: Top-Level System

Finally, we create the top-level system that contains:

The VDP subsystem
A Scope for visualization

At this level, the VDP subsystem looks like a simple block with two outputs, hiding all its internal complexity

Python

Simulation Setup

We use a stiff solver (ESDIRK43) because :math:`\mu = 1000makes this a very stiff system.

Python

12:43:50 - INFO - LOGGING (log: True)
12:43:50 - INFO - BLOCKS (total: 2, dynamic: 1, static: 1, eventful: 0)
12:43:50 - INFO - GRAPH (nodes: 2, edges: 1, alg. depth: 1, loop depth: 0, runtime: 0.028ms)
12:43:50 - INFO - STARTING -> TRANSIENT (Duration: 2000.00s)
12:43:51 - INFO - --------------------   1% | 0.6s<13.4s | 37.8 it/s
12:43:51 - INFO - #####---------------  27% | 0.9s<1.2s | 24.6 it/s
12:43:52 - INFO - ########------------  40% | 1.6s<10.7s | 18.8 it/s
12:43:54 - INFO - ########------------  41% | 3.7s<12.5s | 51.1 it/s
12:43:54 - INFO - #############-------  67% | 4.1s<0.6s | 24.2 it/s
12:43:55 - INFO - ################----  80% | 4.6s<2.2s | 25.0 it/s
12:43:57 - INFO - ################----  81% | 6.4s<8.1s | 62.5 it/s
12:43:57 - INFO - #################### 100% | 6.7s<--:-- | 25.0 it/s
12:43:57 - INFO - FINISHED -> TRANSIENT (total steps: 341, successful: 234, runtime: 6707.70 ms)

Results: Time Series

The Van der Pol oscillator with MATHINLINE0ENDMATH exhibits relaxation oscillations - fast transitions between slow phases. This requires a stiff solver to handle efficiently.

Python

Subsystem Benefits Demonstrated

This example shows several advantages of subsystems:

Modularity: The ODE function is completely separate from the integration
Reusability: The Fn subsystem could be used in other models
Clarity: The top level is clean - just VDP and Scope
Debugging: Each subsystem can be tested independently
Abstraction: Inner complexity is hidden from higher levels

Comparison with ODE Block

Compare this hierarchical approach with using a single ODE block:

# Alternative: Using ODE block (simpler but less modular)
def vdp_ode(x, u, t):
    return np.array([x[1], mu*(1 - x[0]**2)*x[1] - x[0]])

VDP = ODE(vdp_ode, np.array([x1_0, x2_0]))

Both approaches work! Use subsystems when:

You need modularity and reusability
The system is complex with many components
You want to visualize internal signals
You're building block diagram models
